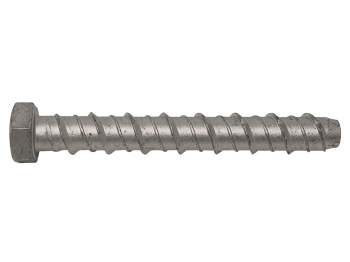

Concrete Bolt M12x100 Box 50 Hex Head

Descriptions

• Medium to heavy-duty self-threading concrete bolt.
• Head: Hexagon.
• Protected with zinc/aluminium coating for increased corrosion protection, salt spray tested to 500 hours.

Specifications

Size	M12 x 100mm
Finish	Zinc/Aluminium
Pack Depth (mm)	160
Pack Height (mm)	100
Pack Width (mm)	152
Pack Paper/Card Weight (gm)	186
Drill Size	12mm
Min Hole Depth	60mm
Max Fixing	40mm
Socket Size	19mm
Metric Size	M12 x 100mm
Outer Depth (mm)	275
Outer Height (mm)	185
Outer Width (mm)	253
Diameter	M12
Brand	FandF
Pack Type	Box
Length	100mm
Barcode	5028485213390
Pack Qty	50
Head Type	Hex

Downloads

Click on any of the following links to download the file.

Datasheet - Concrete Bolts (pdf)
