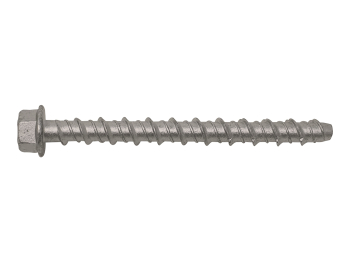

Concrete Bolt M6x100 Box 100 Hex/Flange Head

Descriptions

• Medium to heavy-duty self-threading concrete bolt.
• Head: Hexagon Flange.
• Flange head acts as a fixed washer distributing the load under the bolt head.
• Protected with zinc/aluminium coating for increased corrosion protection, salt spray tested to 500 hours.

Specifications

Size	M6 x 100mm
Finish	Zinc/Aluminium
Pack Depth (mm)	160
Pack Height (mm)	85
Pack Width (mm)	110
Pack Paper/Card Weight (gm)	123
Drill Size	6mm
Min Hole Depth	30mm
Max Fixing	55mm
Socket Size	10mm
Metric Size	M6 x 100mm
Outer Depth (mm)	275
Outer Height (mm)	190
Outer Width (mm)	250
Diameter	M6
Brand	FandF
Pack Type	Box
Length	100mm
Barcode	5028485213116
Pack Qty	100
Head Type	Hex/Flange

Downloads

Click on any of the following links to download the file.

Datasheet - Concrete Bolts (pdf)
