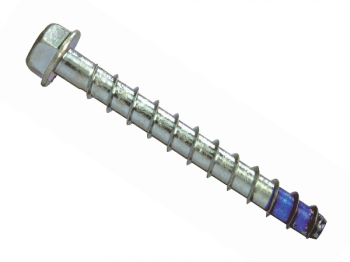

Blue-Tip 2 Screwbolts HEX Box 25 (ZP) M10x120
DeWALT

Blue-Tip 2 Screwbolts HEX Box 25 (ZP) M10x120

Login or call us for details of your nearest distributor.

Descriptions

• Blue-Tip 2 Screw-Bolts - High Performance, One-piece Design Concrete Screws.
• Blue-Tip 2 Screw-Bolts are the only bolts with ETA/Fire approval across the full range.
• ETA Option 1 approved for cracked and uncracked concrete.
• ETA Part 6 approved on 6mm diameters (excluding M6x30mm).
• Fire rated to F120.
• Re-designed to ensure a simple installation with greatly improved loading capacities every time.
• Features a patented thread, designed for use with standard metric drill bits; reduces installation torque and increases productivity.
• Patented thread taps into the hole during installation to provide keyed engagement. Allows for reduced edge and spacing distances.
• Range includes lengths from 30 to 200mm and diameters from 6 to 16mm, ensuring a Blue-Tip 2 Screw-Bolt for all applications.
• Head: Hex/Flange.
• Finish: Zinc Plated.

Applications:
• Racking and shelving; Temporary supports; Fencing; Railings and handrails; Stadium seating; Fastening steel and metal base plates to concrete.

SizeM10 x 120mm
FinishZinc Plated
Pack Depth (mm)246
Pack Height (mm)80
Pack Width (mm)128
Drill Size10.0mm
Max Fixing60mm
Socket Size17mm
Metric SizeM10 x 120mm
DiameterM10
BrandDeWALT
Pack TypeBox
Length120mm
Barcode5054905246518
Pack Qty25
Head TypeHex/Flange
