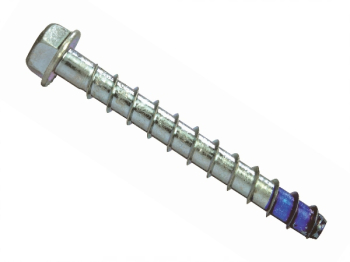

Blue-Tip 2 Screwbolts HEX Box 20 (ZP) M12x150
DeWALT

Blue-Tip 2 Screwbolts HEX Box 20 (ZP) M12x150

Login or call us for details of your nearest distributor.

Descriptions

• Blue-Tip 2 Screw-Bolts - High Performance, One-piece Design Concrete Screws.
• Blue-Tip 2 Screw-Bolts are the only bolts with ETA/Fire approval across the full range.
• ETA Option 1 approved for cracked and uncracked concrete.
• ETA Part 6 approved on 6mm diameters (excluding M6x30mm).
• Fire rated to F120.
• Re-designed to ensure a simple installation with greatly improved loading capacities every time.
• Features a patented thread, designed for use with standard metric drill bits; reduces installation torque and increases productivity.
• Patented thread taps into the hole during installation to provide keyed engagement. Allows for reduced edge and spacing distances.
• Range includes lengths from 30 to 200mm and diameters from 6 to 16mm, ensuring a Blue-Tip 2 Screw-Bolt for all applications.
• Head: Hex/Flange.
• Finish: Zinc Plated.

Applications:
• Racking and shelving; Temporary supports; Fencing; Railings and handrails; Stadium seating; Fastening steel and metal base plates to concrete.

SizeM12 x 150mm
FinishZinc Plated
Pack Depth (mm)246
Pack Height (mm)80
Pack Width (mm)128
Drill Size12.0mm
Max Fixing75mm
Socket Size19mm
Metric SizeM12 x 150mm
DiameterM12
BrandDeWALT
Pack TypeBox
Length150mm
Barcode5054905246594
Pack Qty20
Head TypeHex/Flange

There are no downloads for this product.
