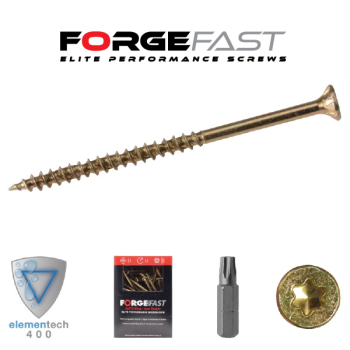

ForgeFast Torx Comp ZY 3.5x25 Box 200 Self Drilling W/Screw
FFTfeatures
FFTBox
ForgeFast

ForgeFast Torx Comp ZY 3.5x25 Box 200 Self Drilling W/Screw

Login or call us for details of your nearest distributor.

Descriptions

• Professional, elite performance multi-purpose woodscrews.
• Ideal for fixing into most wood applications.
• Elementech 400 surface coating provides corrosion resistance.
• Salt spray tested to 400 hours.
• A Non-Cr, Cr3+, yellow/zinc plated surface is environmentally friendly.
• A deep torx compatible head ensures reduced cam-out, higher torque levels and a firmer drive.
• Patented self-drilling thread - no pilot hole needed.
• Torx compatible insert for a higher transmission of power.
• Patented drill/drive shank for faster drive, reduced splitting and 'jacking' of the timber, increased pull-out and firmer fix.
• A sharp point for faster bite, capable of penetrating 0.8mm steel.
• Unique self drilling shank drives into most substrates -including hardwood - with ease.
• Hardened case and core give exceptional strength.
• Improved countersinking from recessed ribs.
• Impressive pull out value and less risk of working loose when used in substrates that flex in use.
• Flexes to 35º reducing likelihood of screw shearing when used in substrates that flex in use.
• CE approved for use in load-bearing timber construction.
• Free torx bit with every box.

Size3.5 x 25mm
FinishZinc Yellow Passivated
Pack Depth (mm)75
Pack Height (mm)35
Pack Width (mm)55
Pack Paper/Card Weight (gm)14.9
Pack Plastic Weight (gm)0.3
Pack CodeBOXFFT2
Insert Bit SizeT15
Thread LengthFully Threaded
Imperial Size1" x 6
Metric Size3.5 x 25mm
Outer Depth (mm)130
Outer Height (mm)85
Outer Width (mm)190
Diameter3.5mm
BrandForgeFast
Pack TypeBox
Length25mm
Barcode5028485144144
Pack Qty200
Drive TypeTorx TX
Head TypeCountersunk
