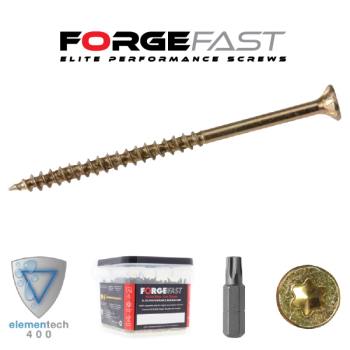

ForgeFast Torx Comp ZY 5.0x60 Tub 500 Self Drilling W/Screw
FFTfeatures
FFTTub
ForgeFast

ForgeFast Torx Comp ZY 5.0x60 Tub 500 Self Drilling W/Screw

Login or call us for details of your nearest distributor.

Descriptions

• Professional, elite performance multi-purpose woodscrews.
• Ideal for fixing into most wood applications.
• Elementech 400 surface coating provides corrosion resistance.
• Salt spray tested to 400 hours.
• A Non-Cr, Cr3+, yellow/zinc plated surface is environmentally friendly.
• A deep torx compatible head ensures reduced cam-out, higher torque levels and a firmer drive.
• Patented self-drilling thread - no pilot hole needed.
• Torx compatible insert for a higher transmission of power.
• Patented drill/drive shank for faster drive, reduced splitting and 'jacking' of the timber, increased pull-out and firmer fix.
• A sharp point for faster bite, capable of penetrating 0.8mm steel.
• Unique self drilling shank drives into most substrates -including hardwood - with ease.
• Hardened case and core give exceptional strength.
• Improved countersinking from recessed ribs.
• Impressive pull out value and less risk of working loose when used in substrates that flex in use.
• Flexes to 35º reducing likelihood of screw shearing when used in substrates that flex in use.
• CE approved for use in load-bearing timber construction.
• Free torx bit with every tub.

Size5.0 x 60mm
FinishZinc Yellow Passivated
Pack Depth (mm)140
Pack Height (mm)120
Pack Width (mm)140
Pack Paper/Card Weight (gm)6.7
Pack Plastic Weight (gm)146
Pack CodeTUBL
Insert Bit SizeT25
Thread Length40mm
Imperial Size2 3/8" x 10
Metric Size5.0 x 60mm
Outer Depth (mm)294
Outer Height (mm)148
Outer Width (mm)262
Diameter5.0mm
BrandForgeFast
Pack TypeTub
Length60mm
Barcode5028485145936
Pack Qty500
Drive TypeTorx TX
Head TypeCountersunk
