TechFast CSK/Wing/No.3 Per 100 (1000 hours) 5.5x80mm
2
3
4
5
TechFast

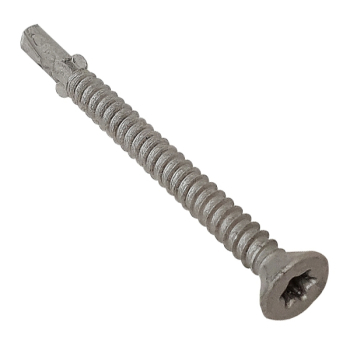

TechFast CSK/Wing/No.3 Per 100 (1000 hours) 5.5x80mm

Login or call us for details of your nearest distributor.

Descriptions

• TechFast Timber to Steel.
• Used for joining Timber to steel frame buildings.
• No.3 drill tip for self-drilling light gauge steel up to 5mm.
• Screw fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through.
• Breakaway wings will ream a hole then break-off when they contact the metal surface to be drilled.  Thread will then engage with metal.
• Torx compatible insert for a higher transmission of power.
• Improved countersinking from recessed ribs.
• Fire and corrosion resistant, protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.

Size5.5 x 80mm
FinishElementech
Pack Depth (mm)182
Pack Height (mm)60
Pack Width (mm)83
Pack Paper/Card Weight (gm)59
Pack Plastic Weight (gm)0
Metric Size5.5 x 80mm
Outer Depth (mm)300
Outer Height (mm)140
Outer Width (mm)195
Diameter5.5mm
Drill Point3
Clamping Thickness60mm
BrandTechFast
Pack TypeBox
Length80mm
Barcode5.02849E+12
Pack Qty100
Drive TypeTorx TX
Head TypeCountersunk
Steel SectionLight Duty
